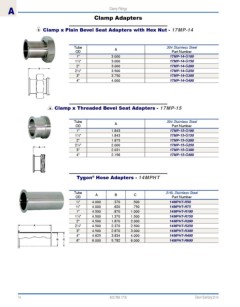

A Clamp Fittings

Clamp Adapters

Clamp x Plain Bevel Seat Adapters with Hex Nut - 17MP-14

Tube 304 Stainless Steel
OD A Part Number
1" 3.000 17MP-14-G100
1½" 3.000 17MP-14-G150
2" 3.000 17MP-14-G200
2½" 3.500 17MP-14-G250
3" 3.750 17MP-14-G300
4" 4.000 17MP-14-G400

Clamp x Threaded Bevel Seat Adapters - 17MP-15

Tube A 304 Stainless Steel
OD Part Number
1" 1.843 17MP-15-G100
1½" 1.843 17MP-15-G150
2" 1.875 17MP-15-G200
2½" 2.000 17MP-15-G250
3" 2.031 17MP-15-G300
4" 2.156 17MP-15-G400

®
Tygon Hose Adapters - 14MPHT

Tube 316L Stainless Steel
OD A B C Part Number
½" 4.000 .370 .500 14MPHT-R50
¾" 4.000 .620 .750 14MPHT-R75
1" 4.500 .870 1.000 14MPHT-R100
1½" 4.500 1.370 1.500 14MPHT-R150
2" 4.500 1.870 2.000 14MPHT-R200
2½" 4.500 2.370 2.500 14MPHT-R250
3" 4.500 2.870 3.000 14MPHT-R300
4" 4.625 3.834 4.000 14MPHT-R400
6" 6.000 5.782 6.000 14MPHT-R600

14 800.789.1718 Dixon Sanitary 2014
