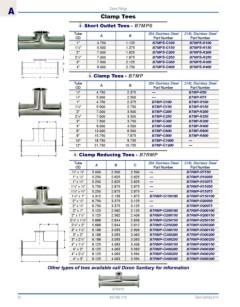

A Clamp Fittings
Clamp Tees
Short Outlet Tees - B7MPS
Tube 304 Stainless Steel 316L Stainless Steel
OD A B Part Number Part Number
1" 4.750 1.125 B7MPS-G100 B7MPS-R100
1½" 5.500 1.375 B7MPS-G150 B7MPS-R150
2" 7.000 1.625 B7MPS-G200 B7MPS-R200
2½" 7.000 1.875 B7MPS-G250 B7MPS-R250
3" 7.500 2.125 B7MPS-G300 B7MPS-R300
4" 9.000 2.750 B7MPS-G400 B7MPS-R400
Clamp Tees - B7MP
Tube A B 304 Stainless Steel 316L Stainless Steel
OD Part Number Part Number
½" 4.750 2.375 --- B7MP-R50
¾" 5.000 2.500 --- B7MP-R75
1" 4.750 2.375 B7MP-G100 B7MP-R100
1½" 5.500 2.750 B7MP-G150 B7MP-R150
2" 7.000 3.500 B7MP-G200 B7MP-R200
2½" 7.000 3.500 B7MP-G250 B7MP-R250
3" 7.500 3.750 B7MP-G300 B7MP-R300
4" 9.000 4.500 B7MP-G400 B7MP-R400
6" 13.000 6.500 B7MP-G600 B7MP-R600
8" 15.750 7.875 B7MP-G800 B7MP-R800
10" 18.750 9.735 B7MP-G1000 ---
12" 21.750 10.735 B7MP-G1200 ---
Clamp Reducing Tees - B7RMP
Tube A B C 304 Stainless Steel 316L Stainless Steel
OD Part Number Part Number
¾" x ½" 5.000 2.500 2.500 --- B7RMP-R7550
1" x ½" 5.250 2.625 2.625 --- B7RMP-R10050
1" x ¾" 5.250 2.625 2.625 --- B7RMP-R10075
1½" x ½" 5.750 2.875 2.875 --- B7RMP-R15050
1½" x ¾" 5.250 2.875 2.875 --- B7RMP-R15075
1½" x 1" 4.312 2.156 1.875 B7RMP-G150100 B7RMP-R150100
2" x ½" 6.750 3.375 3.125 --- B7RMP-R20050
2" x ¾" 6.750 3.375 3.125 --- B7RMP-R20075
2" x 1" 5.125 2.562 2.125 B7RMP-G200100 B7RMP-R200100
2" x 1½" 5.125 2.562 2.406 B7RMP-G200150 B7RMP-R200150
2½" x 1½" 5.688 2.844 2.656 B7RMP-G250150 B7RMP-R250150
2½" x 2" 5.688 2.844 2.812 B7RMP-G250200 B7RMP-R250200
3" x 1½" 6.188 3.093 2.906 B7RMP-G300150 B7RMP-R300150
3" x 2" 6.188 3.093 3.063 B7RMP-G300200 B7RMP-R300200
3" x 2½" 6.188 3.093 3.093 B7RMP-G300250 B7RMP-R300250
4" x 1½" 8.125 4.063 3.406 B7RMP-G400150 B7RMP-R400150
4" x 2" 8.125 4.063 3.563 B7RMP-G400200 B7RMP-R400200
4" x 2½" 8.125 4.063 3.594 B7RMP-G400250 B7RMP-R400250
4" x 3" 8.125 4.063 3.594 B7RMP-G400300 B7RMP-R400300
Other types of tees available call Dixon Sanitary for information
