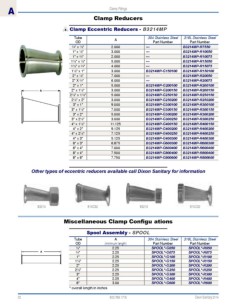

Page 24 - index

A Clamp Fittings

Clamp Reducers

Clamp Eccentric Reducers - B3214MP
Tube A 304 Stainless Steel 316L Stainless Steel
OD Part Number Part Number
¾" x ½" 2.000 --- B3214MP-R7550
1" x ½" 3.000 --- B3214MP-R10050
1" x ¾" 2.000 --- B3214MP-R10075
1½" x ½" 5.000 --- B3214MP-R15050
1½" x ¾" 4.000 --- B3214MP-R15075
1½" x 1" 3.000 B3214MP-G150100 B3214MP-R150100
2" x ½" 7.000 --- B3214MP-R20050
2" X ¾" 6.000 --- B3214MP-R20075
2" x 1" 5.000 B3214MP-G200100 B3214MP-R200100
2" x 1½" 3.000 B3214MP-G200150 B3214MP-R200150
2½" x 1½" 5.000 B3214MP-G250150 B3214MP-R250150
2½" x 2" 3.000 B3214MP-G250200 B3214MP-R250200
3" x 1" 9.000 B3214MP-G300100 B3214MP-R300100
3" x 1½" 7.000 B3214MP-G300150 B3214MP-R300150
3" x 2" 5.000 B3214MP-G300200 B3214MP-R300200
3" x 2½" 3.000 B3214MP-G300250 B3214MP-R300250
4" x 1½" 11.125 B3214MP-G400150 B3214MP-R400150
4" x 2" 9.125 B3214MP-G400200 B3214MP-R400200
4" x 2½" 7.125 B3214MP-G400250 B3214MP-R400250
4" x 3" 5.125 B3214MP-G400300 B3214MP-R400300
6" x 3" 6.875 B3214MP-G600300 B3214MP-R600300
6" x 4" 7.000 B3214MP-G600400 B3214MP-R600400
8" x 4" 7.500 B3214MP-G800400 B3214MP-R800400
8" x 6" 7.750 B3214MP-G800600 B3214MP-R800600

Other types of eccentric reducers available call Dixon Sanitary for information

B3214 B14C32 B3215 B15C32

Miscellaneous Clamp Configu ations

Spool Assembly - SPOOL
Tube A 304 Stainless Steel 316L Stainless Steel
OD (minimum length) Part Number Part Number
½" 2.25 SPOOL*-G050 SPOOL*-R050
¾" 2.25 SPOOL*-G075 SPOOL*-R075
1" 2.25 SPOOL*-G100 SPOOL*-R100
1½" 2.25 SPOOL*-G150 SPOOL*-R150
2" 2.25 SPOOL*-G200 SPOOL*-R200
2½" 2.25 SPOOL*-G250 SPOOL*-R250
3" 2.25 SPOOL*-G300 SPOOL*-R300
4" 2.25 SPOOL*-G400 SPOOL*-R400
6" 3.00 SPOOL*-G600 SPOOL*-R600
* overall length in inches
